Extracting Library and Cell Names from a Top Cell Hierarchy Using SKILL Code

Contents:

  1. Approach
  2. SKILL Code
  3. SKILL Code Overview
  4. Function Output
  5. Usage Examples
  6. Alternative Methods

This guide explains how to extract the names of libraries and cells used in a top cell hierarchy within layout and schematic views. Essentially, it answers the question: What libraries and cells are utilized in the design?

Key Considerations:

  • The goal is to collect library and cell names once. For object counting, other techniques should be used.
  • Larger top cells may result in longer execution times.

1. Approach

The method involves traversing the top cell's hierarchy, like navigating through layout or schematic windows. Manually, you would select an instance and descend into its cell view. Our SKILL code achieves this using recursion, tracking visited library and cell names with SKILL's table data structure.

2. SKILL Code

1procedure( getLibrariesCellsUsedIn(cellView
2            @optional (usedLibrariesCellsTable nil))
3    /*
4    Retrieves all libraries and cells used in the hierarchy of a given
5    cell view.
6
7    @param cellView dbObject
8    The cell view object from which to retrieve the hierarchy.
9
10    @param usedLibrariesCellsTable table
11    Optional. A table to keep track of used libraries and cells.
12    If not provided, a new table is created.
13
14    @return table
15    A table containing libraries as keys and tables of cell names as
16    values, representing the hierarchy.
17    */
18    let( (cellTable libName cellName cellObject message viewName nextCellView)
19
20        ; First initialization
21        unless( usedLibrariesCellsTable
22            usedLibrariesCellsTable = makeTable('usedLibrariesCellsTable nil)
23            cellTable = makeTable('cellTable nil)
24            cellTable[cellView~>cellName] = t
25            usedLibrariesCellsTable[cellView~>libName] = cellTable
26        );unless
27
28        foreach( instance cellView~>instHeaders
29            libName = instance~>libName
30            cellName = instance~>cellName
31            cellObject = ddGetObj(libName cellName)
32
33            if( !cellObject
34            then
35                message = strcat("[getLibrariesCellsUsedIn] " libName "/"
36                    cellName " cell doesn't exist in your Library Manager")
37                warn(message)
38            else
39                ; Creates cells' table for a library
40                unless( usedLibrariesCellsTable[libName]
41                    cellTable = makeTable('cellTable nil)
42                    usedLibrariesCellsTable[libName] = cellTable
43                );unless
44
45                unless( usedLibrariesCellsTable[libName][cellName]
46                    ; This cell is not in table yet
47                    usedLibrariesCellsTable[libName][cellName] = t
48
49                    ; Gets instance's cell view
50                    viewName = mapViewName(instance~>viewName)
51                    nextCellView = dbOpenCellViewByType(libName cellName viewName)
52                    when( nextCellView
53                        usedLibrariesCellsTable = getLibrariesCellsUsedIn(nextCellView
54                            usedLibrariesCellsTable)
55                    );when
56                );unless
57            );if
58        );foreach
59
60        usedLibrariesCellsTable
61    );let
62);procedure
63
64
65procedure( mapViewName(viewName)
66    /* Maps a view name to a common view name that includes 'instances'
67    for hierarchy traversal.
68
69    @param viewName string
70    The name of the view to be mapped.
71
72    @return string
73    The mapped view name.
74    */
75
76    if( viewName == "symbol"  ; Symbol's cell view doesn't have ~>instances
77    then
78        "schematic"
79    else
80        viewName
81    );if
82);procedure

3. SKILL Code Overview

Encapsulating code in functions allows us to reuse the code in other tools.

Lines 1-17:

Define the main function, including its name and arguments. Documentation is optional but recommended.

  • cellView: The top cell's cell view dbObject, obtainable via dbOpenCellViewByType.
  • usedLibrariesCellsTable: An optional argument for tracking visited libraries and cells during recursion.

Line 18:

Use let to define local variables (memory management in Virtuoso is beyond this guide's scope, though, it can be a different topic for a guide).

Lines 20-26:

Initialize the tracker table for the first time, which will track visited libraries and cells.

Lines 28-58:

Traverse all instances in the current cell view, marking them as "visited" and delving deeper into the hierarchy.

Lines 29-31:

Define variables to hold instance’s necessary data for the algorithm.

Lines 33-37:

Check if current library and cell names exist in the database, using a “dd” object. If not, print a warning in the CIW and skip the descension code for the current instance.

Lines 39-43:

If visiting the library name for the first time, initialize a table for cell names.

Lines 45-56:

Skip if the cell name has been visited; otherwise:

  • Line 47: Mark it as visited.
  • Line 50: Map the view name to ensure instances are accessible. When we traverse the schematic hierarchy, every instance’s view will be a symbol, which, when open, doesn’t include information, such as “instances”. Thus, we need to map a “symbol” to a “schematic” view using our helper function - mapViewName.
  • Line 51: Open the next cell view, using the mapped view name.
  • Lines 52-55: Descend into the next cell view.

Line 60:

Each recursive function iteration returns a reference to the tracker table.

Lines 65-82:

mapViewName: Maps "symbol" to "schematic" view; otherwise, returns the given view name.

4. Function Output

The main function, getLibrariesCellsUsedIn, returns a SKILL table with library and cell names as strings. This data can be used to call other functions, create objects, or access further information.

5. Usage Examples

After loading the main code, run the following in CIW:

1libName = “my_lib_name”  ; Replace with actual names
2cellName = “my_cell_name”
3viewName = “view_name”
4cellView = dbOpenCellViewByType(libName cellName viewName)
5table = getLibrariesCellsUsedIn(cellView)

After execution, the table variable can be utilized in various ways:

  • Get library names only:
1libraries = table~>?
  • Get library’s cell names:
1libName = “my_lib_name”  ; Replace with actual name
2cells = table[libName]~>?
  • Access each cell in each library:
1foreach( libName table
2foreach( cellName table[libName]
3; Do stuff, e.g., open cell view, get views names, etc.
4; cellView = dbOpenCellViewByType(libName cellName "layout")
5; views = ddGetObj(libName cellName)~>views~>name
6)
7)

6. Alternative Methods

Besides SKILL, other methods exist for hierarchy extraction:

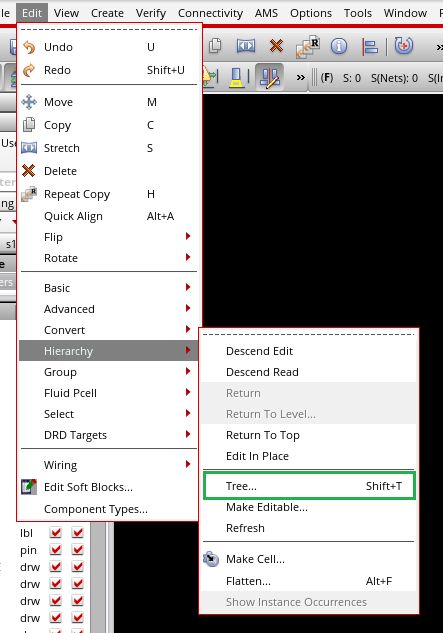

  • From layout or schematic window: Use Edit -> Hierarchy -> Tree… or Shift+T bind key (by default) to generate a text file with hierarchy info.


SKILL Hierarchy Tree

SKILL Hierarchy Tree

In schematic view it’s “Print Tree”.

  • Using fastTree tool in a Linux terminal (if installed):
1fastTree -lib ,[object Object]

This creates a file (default: cellName.viewName.tree) that can be parsed with SKILL or other programming languages.

Author: Eugeny Khanchin
